Capacity: 0.5T/h~50T/h

Type: Steam Boiler

Pressure: 0.1Mpa~3.8Mpa

Fuel: Natural Gas, LPG , Exhause Gas , Diesel, Heavy Oil , Dual Fuel (Gas or Oil) etc.

Industry Usage: Foods, Textile, Plywood, Paper, Brewery, Ricemill, Printing & Dyeing, Poultry feed, Sugar, Packaging, Building material, Chemical,Garment, etc

Introduction :

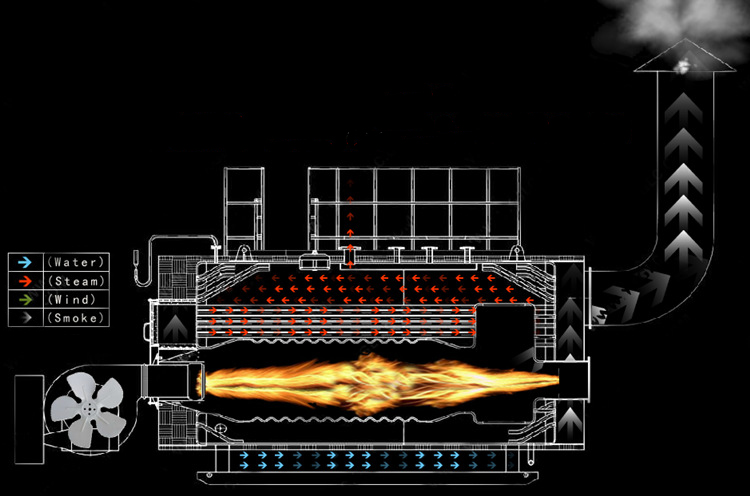

WNS series steam boiler burning oil or gas is Horizontal internal combustion three backhaul fire tube boiler, adopts boiler furnace wet back structure, high temperature smoke, gas turn to scour the second and third backhaul smoke tube plate, then after the smoke chamber. discharged into the atmosphere through the chimney.
There are the front and back Smokebox Cap in the boiler, easy to maintenance.
Excellent burner adopts combustion automatic ratio adjustment , feedwater automatic control, start and stop program , automatic operation and other advanced technology, also has the High&Low water level alarm and protection function of Extreme low water levels, ultra-high pressure, turn off etc..
The boiler has the features of compact structure, safe and reliable, simple operation, quick installation, less pollution, low noise, and high efficiency.

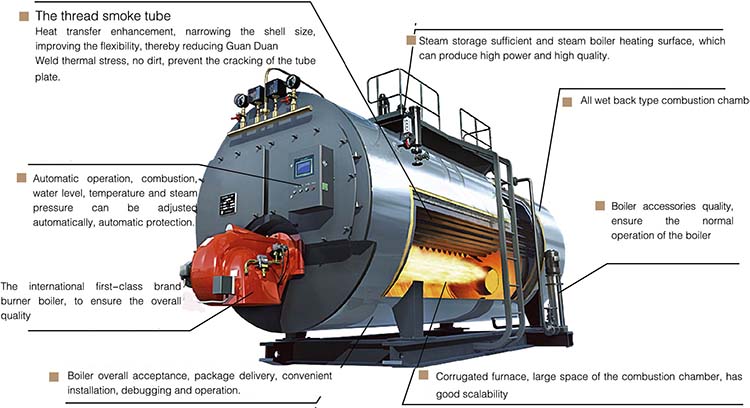

Feature:

1.Overall structure is reasonable and compact, easy to install.
The boiler is composed of Boiler body, chimney and piping system. The boiler body and chimney have been finished in the factory, the pipe, valve and gauge in the boiler have also been completed in the factory. The clients only need to assemble the boiler and chimney together , connect the gas ,power, water and then
to test run , greatly shorten the installation time, and ensure the quality of the boiler.
2. Advanced design, the whole structure, combustion chamber assemble in Front smokebox cover, the body has the heating surface and combustion chamber. It is the reasonable structure, compact, low consumption of steel , the furnace gall is bias wave form furnace, the insulation layer is new thermal insulation materials, color sheet packaging, packaging shape is rectangular, the boiler performance, weight, structure, size, shape modeling is more advanced and perception .
The feed water device equip on the right side of the boiler base , the whole structure, do not need another foundation.
3. Simple water cycle, reasonable structure of pressure parts, guarantee water quality, safe to run
4. Complete Ancillary equipment, advanced comprehensive technology

Feature:

WNS Steam Boiler burning oil or gas

Main Technology Parameter List

ModelItem		WNS0.5-0.7-YQ	WNS1-0.7-YQ	WNS2-1.25-YQ	WNS4-1.25-YQ	WNS6-1.25-YQ
Rated Capacity  T/h		0.5	1	2	4	6
Rated Working Pressure		0.7 Mpa	0.7 Mpa	1.25 Mpa	1.25 Mpa	1.25 Mpa
Rated Steam Temp. ℃		170.4	170	194	194	194
Feed Water Temp. ℃		20
Heating Surface m²		15	35	57	114	170
Installed Overall Dimension		2.7x1.4x1.6	3.4x2.2x2.6	4x2.2x2.5	4.9x2.4x2.75	5.5x2.6x2.99
Boiler Weight  Ton		0.15	4.13	7.789	13.19	15.398
Power Source   V		380V/50Hz
Water Pump Model			QDL1.2-8x15	JGGC2.4-8x18	JGGC4.8-8x22	JGGC12.5-13.4x12
Chimney mm				Ø 450x3	Ø 600x3	Ø 700x3
Thermal Efficiency  %				87	88	88
Design Fuel		Light Oil/Heavy Oil/Town Gas/Natural Gas
FuelConsumption	Light Oil			124.75	249.21	373.41
	Heavy oil			131.72	263.12	394.26
	Natural gas			144.16	287.98	431.5
Burner Brand`		Weishaupt
Ringelmann shade		< Grade 1

ModelItem		WNS8-1.25-YQ	WNS10-1.25-YQ	WNS15-1.25-YQ	WNS20-1.25-YQ
Rated Capacity  T/h		8	10	15	20
Rated Working Pressure		1.25 Mpa	1.25 Mpa	1.25 Mpa	1.25 Mpa
Rated Steam Temp. ℃		194	194	194	194
Feed Water Temp. ℃		20
Heating Surface m²		200.7	246.2	379	520
Installed Overall Dimension		5.9x2.7x3.148	6.8x2.9x3.39	7.15x3.2x3.54	9.2x3.8x3.54
Boiler Weight  Ton		20	26.254	38.2	43.4
Power Source   V		380V/50Hz
Water Pump Model		JGGC12.5-10B	JGGC18-11B	JGGC18-10B	JGGC25-10B
Chimney mm		Ø 800x3	Ø 800x3	Ø 1000x5	Ø 1000x5
Thermal Efficiency  %		89	89	89	89
Design Fuel		Light Oil/Heavy Oil/Town Gas/Natural Gas
FuelConsumption	Light Oil	497.78	621	931.5	1553
	Heavy oil	525.57	680	1020	1700
	Natural gas	575.2	719.17	1078.76	1800
Burner Brand`		Weishaupt/ NU-WAY
Ringelmann shade		< Grade 1

---
