Capacity: 0.5T/h~50T/h, 0.35MW~35MW

Type: Hot Water Boiler

Fuel: Biomass, coal, wood, rice husk, shells, pellets, bagasse, waste etc.

Introduction :

biomass boiler is horizontal three-back water fire pipe composite boiler. The fuel can be Biomass,coal,wood,rice husk,shells,pellets,bagasse,waste etc..

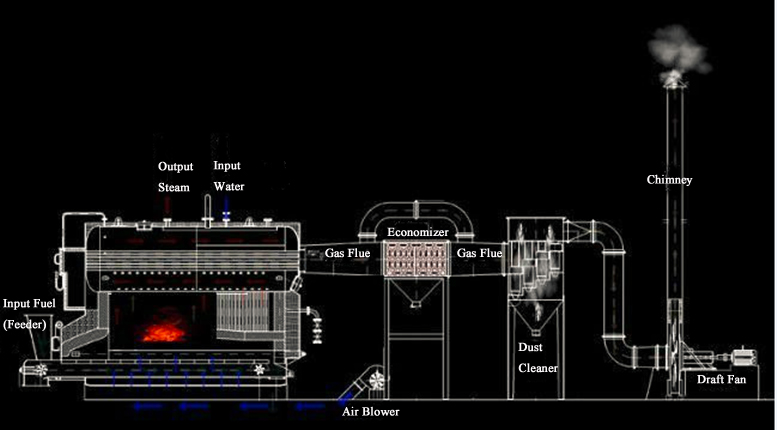

Display

Feature:

1. High thermal efficiency
2. By mechanize operation, reduce intensity of labour of stoker.
3. Easy for installation, when on site, only install slag remover, valve, pipe, water and power, etc., the boiler can be launched into running, additionally, the firing is fast.
4. Easy for installation and moving, save a great amount of capital outlay.
5. Fule: Biomass, coal, wood, rice husk, shells, pellets, bagasse, waste , lower calorific value: 12792KJ/Kg.

Parameter :

DZG（L）Bearing Pressure Hot water boiler

Main Technology Parameter List

Model		DZG0.7-0.7/95/70 DZL0.7-0.7/95/70	DZG1.4-0.7/95/70 DZL1.4-0.7/95/70 DZL1.4-1.0/115/70	DZL28-1.0/115/70 DZL2.8-1.25/130/70	DZL4.2-1.0/115/70 DZL4.2-1.25/130/70
Rated Capacity T/h		0.7	1.4	2.8	4.2
Rated Working Pressure Mpa		0.7	0.7/1.0	1.0/1.25	1.0/1.25
Rated Steam Temp. ℃		95	95/115	115/130	115/130
Feed Water Temp. ℃		70	70	70	70
Fuel Consumption  Kg/H		~150	~310	~590	~900
Thermal Efficiency  %		75	78	79	77.44
Heating Surface	Boiler Body m²	32.4	33.85	75.75	142
	Economizer m²		24.64	38.5	87.2
Grate area   m²		1.4/2.05	2.3/3.5	4.66	7.4
Designed Fuel  Type		Biomass	Biomass	Biomass	Biomass
Max. Transport Weight  T		~16	~21	~26.5	~30
Max. Transport Dimension  m		4.3x2.25x2.955.26x2.25x2.95	5.1x2.2x3.35.9x2.2x3.3	6.5x2.6x3.5	6.01x3.4x3.57.29x2.9x1.7





Model	DZL7-1.0/115/70	DZL14-1.0/115/70	DZL29-1.25/130/70	DZL46-1.25/130/70	DZL58-1.25/130/70	DZL70-1.25/130/70
Rated Capacity T/h	7	14	29	46	58	70
Rated Working Pressure Mpa	1.0	1.0	1.25	1.25	1.25	1.25
Rated Steam Temp. ℃	115	115	130	130	130	130
Feed Water Temp. ℃	70	70	70	70	70	70
Heating AreaBoiler Body m²	228.6	434.7	Radiation:73.07Convection:903.01	Radiation:147.8Convection:1418.5	Radiation:147.8Convection:1418.5	Radiation:147.8Convection:1418.5
Grate area   m²	11.5	22.5	34.5	57.8	77	91
Fuel Consumption Kg/h	~1440	~2700	~6610	~10500	~12800	~15300
Thermal Efficiency  %	80	80	82.5	82.05	83.03	83.28
Max. Transport Weight  Ton	35	28	19.68	28.796	31	31

Note: Parameter is just for reference, the exact parameter should follow the factory technical data.

---
