The autoclave system Double Rings produced absorbs the advantages of similar foreign products from the development. Main pressure autoclave components of the finite element analysis and various stress experiments, improved the strength calculation.


Product Detail

  • Internal Diameter: ≥1.65m
  • Working Pressure: 1.0-1.6MPa
  • Operating Temperature: 184-201℃
  • Working Medium: Saturation Steam
  • Application: Flyash Block Plant，Building Material, AAC Plant,

    • autoclave-Popular used in ACC Plant,Flyash Plant,Building Material etc..

    Autoclave Feature

    1, the first domestic production of autoclave professional factory.2, assembly line production, welding all the automation, quality and stability.3, all the pressure components 100% X-ray film detection, advanced detection methods.4, the product as a whole factory, advanced and reasonable structure, short installation period, the investment cost is low.5, fully furnished, by manual or computer control.

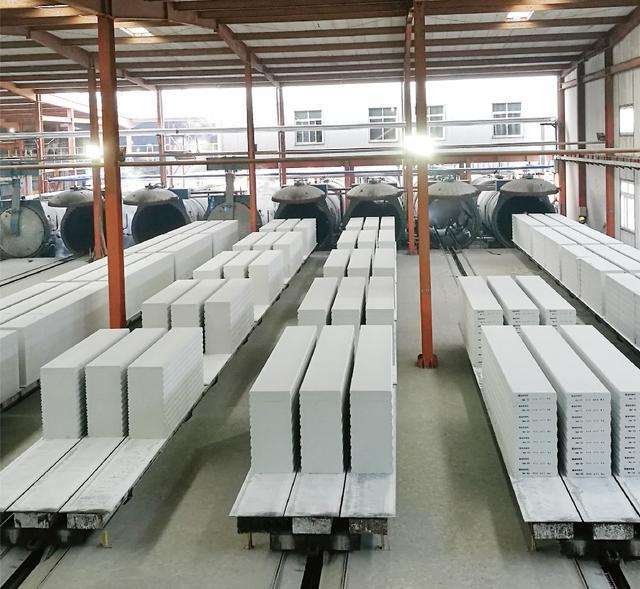

        Autoclave use:    Autoclave steam curing equipment for large, can be used for steam-cured sand lime bricks, fly ash bricks, aerated concrete blocks, high-strength concrete pole, pipe and other concrete products, but also for timber, medicine, chemical industry, glass, insulation materials and other industries.autoclave and boiler ACC

    Autoclave Specification

    Autoclave Series

    Main Technology Parameter List

    ModelItemFGZCS1.0-1.65x21 FGZCS1.3-2x21FGZCS1.3-2x22FGZCS1.3-2x26FGZCS1.3-2x27.5FGZCS1.3-2x30
    Inside Diameter     mm

    1650

    		2000

    2000

    2000

    2000

    2000

    Effective Length     mm

    21000

    21000

    22000

    26000

    		2750030000
    Design Pressure     Mpa

    1.08

    1.4

    1.4

    1.4

    1.4

    1.4

    Design Temperature  ℃

    187

    197.3

    197.3

    197.3

    197.3

    197.3

    Working Pressure   Mpa

    1.0

    1.3

    1.3

    1.3

    1.3

    1.3

    Working Temperature ℃

    183

    193.3

    193.3

    193.3

    193.3

    193.3

    Actuating Medium

    Saturated Steam , condensed water

    Inside Rail Distance  mm

    600

    448

    600

    750

    600

    600

    Effective Volume     m3

    46

    68

    71

    84

    88.5

    96.4

    Gross Weight        Kg

    18830

    25830

    		26658

    30850

    32170

    34100

    Overall Dimension   mm

    21966x

    2600x2803

    22300x

    2850x3340

    		23300x2850x3340

    27300x

    2850x3340

    28800x

    2850x3340

    31300x

    2850x3340



    ModelItemFGZCS1.5-2.68x22.5FGZCS1.5-2.68x26FGZCS1.5-2.68x39FGZCS1.5-2.85x21FGZCS1.5-2.85x23
    Inside Diameter     mm

    2680

    		2680

    2680

    2850

    2850

    Effective Length     mm

    22500

    26000

    39000

    21000

    		23000
    Design Pressure     Mpa

    1.6

    1.6

    1.6

    1.6

    1.6

    Design Temperature  ℃

    204

    204

    204

    201.3

    203

    Working Pressure   Mpa

    1.5

    1.5

    1.5

    1.5

    1.5

    Working Temperature ℃

    200

    200

    200

    197.3

    199

    Actuating Medium

    Saturated Steam , condensed water


    Inside Rail Distance  mm

    800

    800

    800

    1000

    963

    Effective Volume     m3

    134

    154.2

    227.5

    137

    150

    Gross Weight        Kg

    45140

    46700

    		67480

    45140

    44565

    Overall Dimension   mm

    24180x

    3850x4268

    27650x

    3454x4268

    		40650x3454x4268

    22634x

    3462x4495

    24900x

    3490x4500



    ModelItemFGZCS1.5-2.85x24 FGZCS1.5-2.85x25FGZCS1.5-2.85x26FGZCS1.5-2.85x26.5FGZCS1.5-2.85x27
    Inside Diameter     mm

    2850

    		2850

    2850

    2850

    2850

    Effective Length     mm

    24000

    25000

    26000

    26500

    		27000
    Design Pressure     Mpa

    1.6

    Design Temperature  ℃

    203

    Working Pressure   Mpa

    1.5

    Working Temperature ℃

    199

    Actuating Medium

    Saturated Steam , condensed water


    Inside Rail Distance  mm

    963

    849

    963

    900

    915

    Effective Volume     m3

    150

    161

    170

    173

    180

    Gross Weight        Kg

    46035

    48030

    		54530

    54880

    55600

    Overall Dimension   mm

    25900x

    3490x4500

    26640x

    3640x4495

    		27634x3640x4495

    28134x

    3462x4495

    28640x

    3640x4495



    ModelItemFGZCS1.5-2.85x29 FGZCS1.5-2.85x36FGZCS1.5-3x23FGZCS1.5-3x31FGZCS1.5-3.2x24.5
    Inside Diameter     mm

    2850

    		2850

    3000

    3000

    3200

    Effective Length     mm

    29000

    36000

    23000

    		3100032000
    Design Pressure     Mpa

    1.6

    Design Temperature  ℃

    203

    Working Pressure   Mpa

    1.5

    Working Temperature ℃

    199

    Actuating Medium

    Saturated Steam , condensed water


    Inside Rail Distance  mm

    963

    900

    1220

    1000

    1200

    Effective Volume     m3

    190

    234

    167

    227

    206

    Gross Weight        Kg58400

    70020

    		56765

    70410

    		62440
    Overall Dimension   mm30634x3640x449537634x3462x449524875x3516x480432875x3516x480426570x3750x5027
