Sub-item | item | description | Remarks |

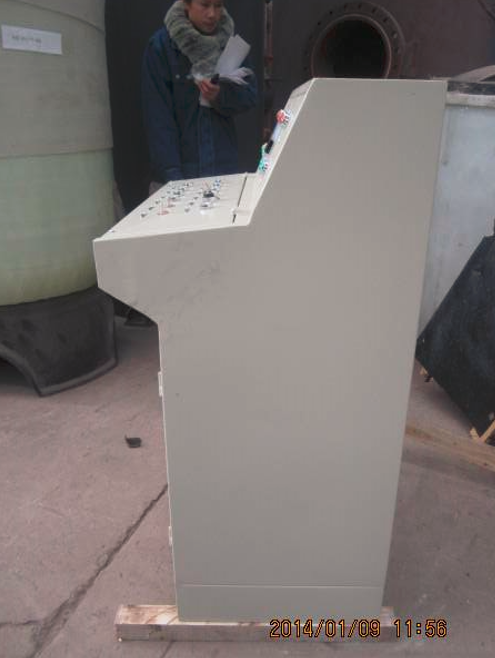

Control System | Brand/Origin | Zhongjia/Nanjing | |
Display screen | touch screen | ||
Make-up pump control | Continuous water supply | ||
Burner control | Pressure control | ||
Operating parameter display | have | ||
Equipment status display | have | ||
Automatic load regulation | Proportional adjustment | ||
Storage of main operating parameters | have | ||
Emergency shutdown function | have | ||
Protective function | Water shortage protection, overpressure protection | ||
Gas system protection | Low gas protection, low wind pressure protection | ||
Control power | 220V | ||
Feed water pump | Brand/Origin | Enda/Zhangjiagang | |
model | JGGC12.5-15×11 | ||
Flow rate (T/H) | 12.5 | ||
Lift（M） | 165 | ||
Motor power (KW) | 15 | ||
using electric | 380V | ||
Burner | Brand/Origin | Koneng/Italy | |
model | THG70/LN+FGR | Low nitrogen type ≤30mg | |
Supply pressure (mbar) | 300 | ||
Combustion adjustment method | Ratio adjustment (including leak detection) | ||
Valve block | VGD80 | ||
Ignition method | Automatic electronic ignition | ||
Low gas pressure protection | Have | ||
Motor power (KW) | 37KW | ||
using electric | 380V |
